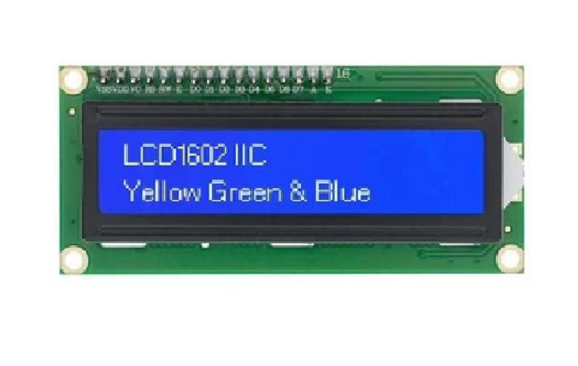

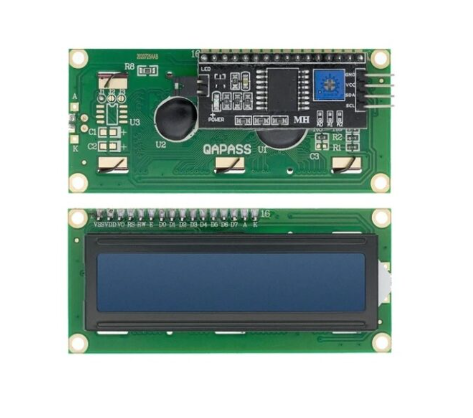

LCD1602 Parallel LCD Display with IIC/I2C interface

1. Model: LCD1602

2. Interface: I2C

3. Interface Address: 0x27

4. Character Color: White

5. Backlight: Blue

6. Supply voltage: 5V

7. Board Dimensions( L x W x H ) mm: 80 x 36 x 18

This is LCD1602 Parallel LCD Display that provides a simple and cost-effective solution for adding a 16×2 White on RGB Liquid Crystal Display into your project. The display is 16 character by 2 line display that has a very clear and high contrast white text upon a blue background/backlight.

The I2C is a type of serial bus developed by Philips, which uses two bidirectional lines, called SDA (Serial Data Line) and SCL (Serial Clock Line). Both must be connected via pulled-up resistors. The usage voltages are standard as 5V and 3.3V.

Features :

1. I2C Reduces the overall wirings.

2. 16 characters wide, 2 rows

3. I2C adapter allows flexibility in connections

4. White text on the Blue background

5. Single LED backlight included can be dimmed easily with a resistor or PWM.

6. Arduino IIC/I2C interface was developed to reduce the IO port usage on the Arduino board

Package Includes :

1 x LCD1602 Parallel LCD Display with IIC/I2C interface
