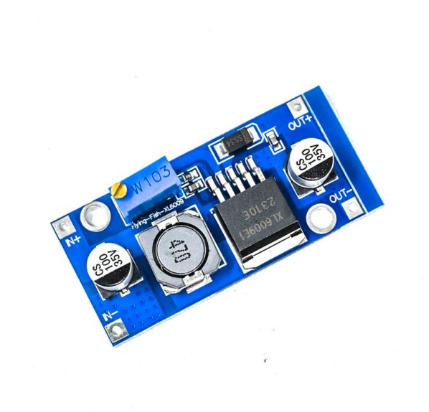

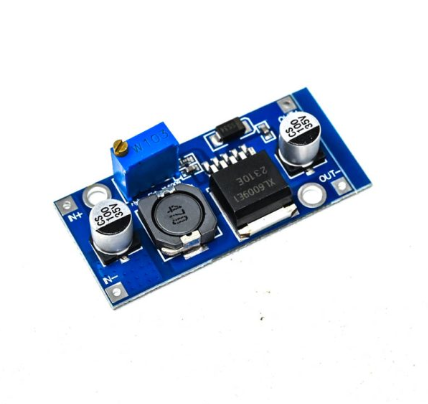

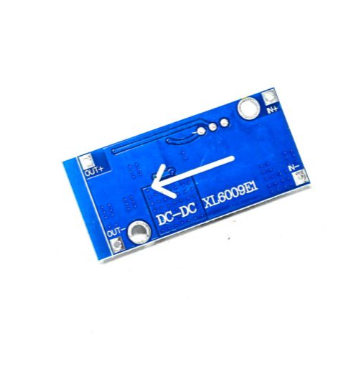

XL6009 DC-DC Step-Up Converter Performance Ultra LM2577 Booster Circuit Board

1. The performance is much higher than LM2577.

2. Non-isolated Boost converter.

3. It has a non-synchronous rectifier.

4. Low ultra wide input voltage 3 v ~ 32 v, the best is 5 ~ 32 v working voltage range;

5. Low ultra wide output voltage 5 v ~ 35 v;

This XL6009 DC-DC Step-Up Converter Performance Ultra LM2577 Booster Circuit Board is a non-isolated step-up (boost) voltage converter featuring adjustable output voltage and high efficiency.

High switching frequency 400KHz, you can use a small -capacity filter capacitors that can achieve very good results, the ripple is smaller and smaller

Pins

• IN+ input positive

• IN- input negative!

• OUT+ output positive

• OUT- output negative

Features :

1. The performance is much higher than LM2577.

2. Non-isolated Boost converter.

3. It has a non-synchronous rectifier.

4. Small and Handy voltage regulator module.
