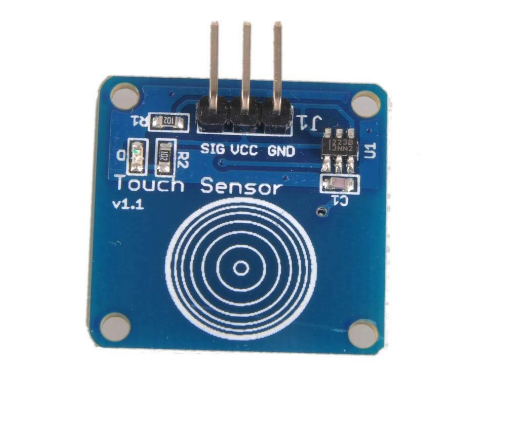

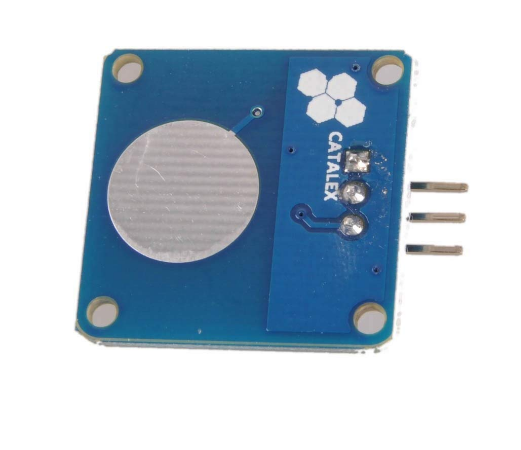

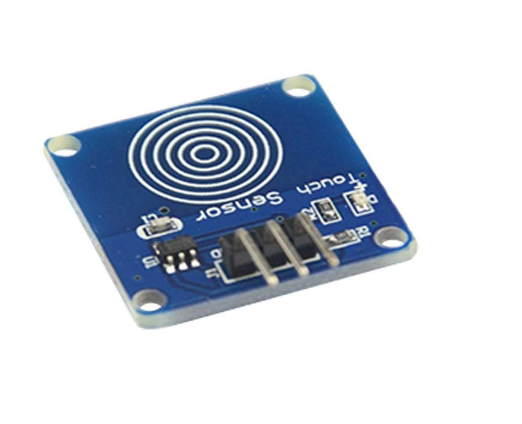

TTP223 touch Sensor
₹55.00₹25.00
Out of stock
Power supply voltage(VCC): 2.0, 3, 5.5 V.
Output high VOH: 0.8VCC V
Output low VOL: 0.3VCC V
Response time (touch mode) : 60 mS
Response time (low power mode) : 220 mS
Can replace the traditional touch of a button
Four M2 screws positioning holes for easy installation
The Digital Sensor TTP223 Module Capacitive Touch Switch is based on a touch-sensing IC (TTP223B) capacitive touch switch module. Allows you to remove the worry of conventional push-type keys.
Features :
Low power consumption
Power supply for 2 ~ 5.5V DC
Can replace the traditional touch of a button
Four M2 screws positioning holes for easy installation
Output Pin Sink Current (@ VCC = 3V, VOL = 0.6V) : 8 mA
Output pin pull-up current (@ VCC = 3V, VOH = 2.4V) : 4 mA
