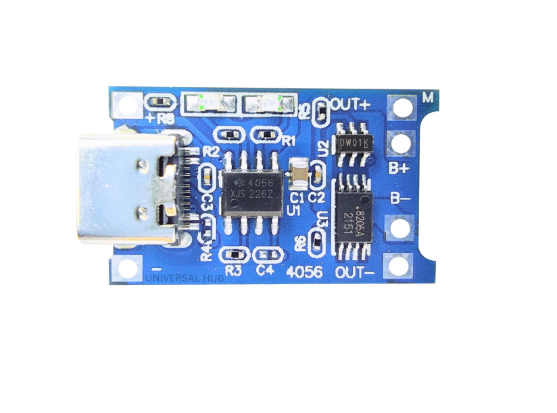

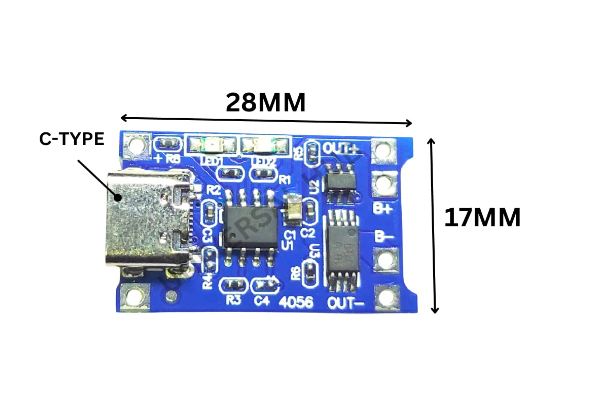

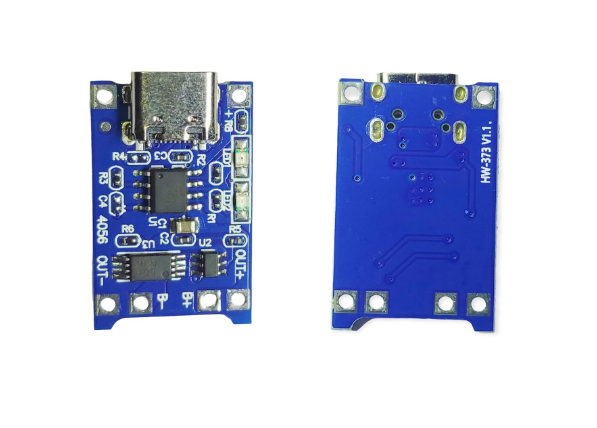

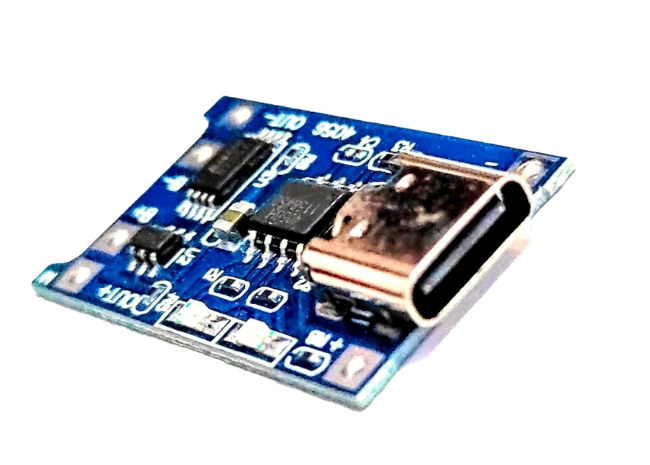

TP4056 Adjustable 1A Li-ion lithium Battery Charging Module with Overcurrent Protection – Type C Port

1. Input interface: Type C

2. Current Protection: Yes

3. Charging mode: Linear charging.

4. Current: 1A adjustable.

5. Charge precision: 1.5%.

6. Input voltage: 4.5V-5.5V.

7. Full charge voltage: 4.2V.

This TP4056 1A Li-ion lithium Battery Charging Module With Current Protection – Type C is a tiny module, perfect for charging single cell 3.7V 1 Ah or higher lithium-ion (Li-Ion) cells such as 16550s that don’t have their own protection circuit. Based on the TP4056 charger IC and DW01 battery protection IC this module will offer 1A charge current then cut off when finished.

Features :

1. Led indicator: Red is charging Green is fully charged.

2. Current Protection: Yes

3. Use mature charging chip TP4056 for simple peripheral circuits, good protection performance, and high charging accuracy.

4. Fully machinery automated processing, all patch parts manufacturing.
