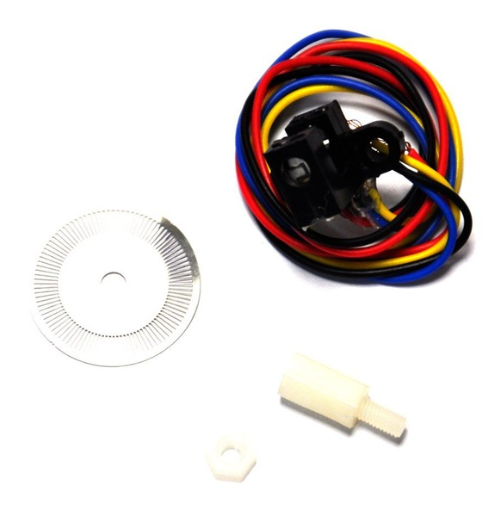

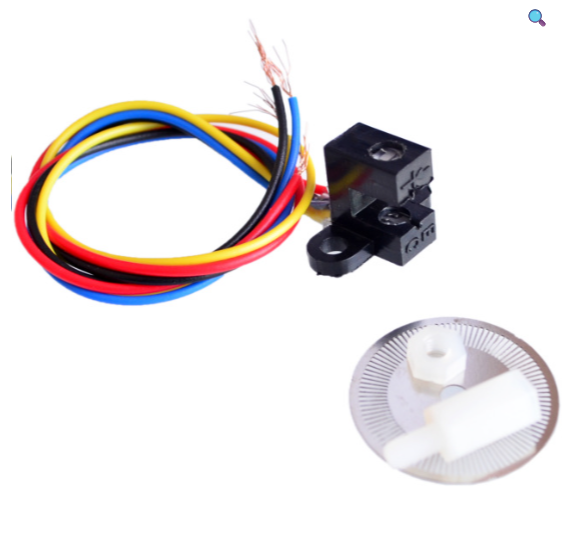

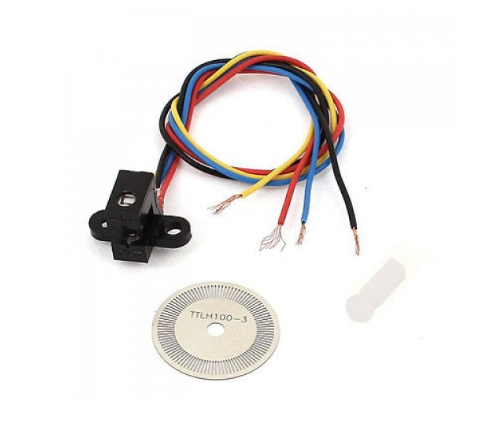

Speed Measuring Sensor Counter Motor Test
₹99.00₹45.00
Out of stock
Specification:
Number of lines: 100 lines
Outer diameter: 22mm
Hole diameter: 3.5mm
Thickness: 0.3mm
Material: alloy steel
Production process: laser cutting
Supply voltage: 5V (3.3V is also available)
Wiring: Red 5V black GND
Output signal: 5Vp-p two-phase signal output
Number of lines: 100 lines
Outer diameter: 22mm
Hole diameter: 3.5mm
Thickness: 0.3mm
Material: alloy steel
Production process: laser cutting
Supply voltage: 5V (3.3V is also available)
Wiring: Red 5V / Black GND
Output signal: 5Vp-p two-phase signal output
Two signal lines, one yellow, one blue
Yellow and blue are two TTL level signals (can be directly connected microcontroller)
The Photoelectric Speed Sensor Encoder Coded Disc code wheel is a Slotted Opto isolator module, with an IR transmitter & a photodiode mounted on it. Performs Non-Contact Object Sensing. This is normally used as positional sensor switch (limit switch) or as Position Encoder sensors used to find the position of the wheel. The module consists of IR LED and Photodiode mounted facing each other enclosed in the plastic body.
