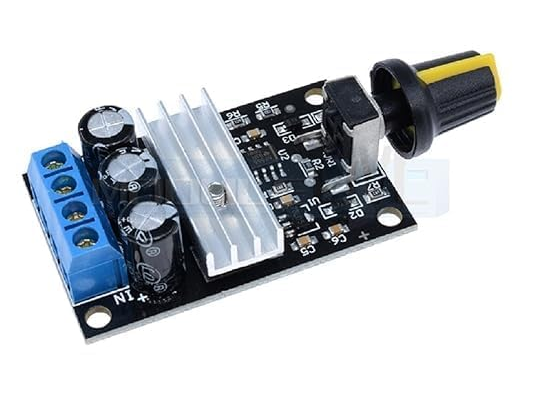

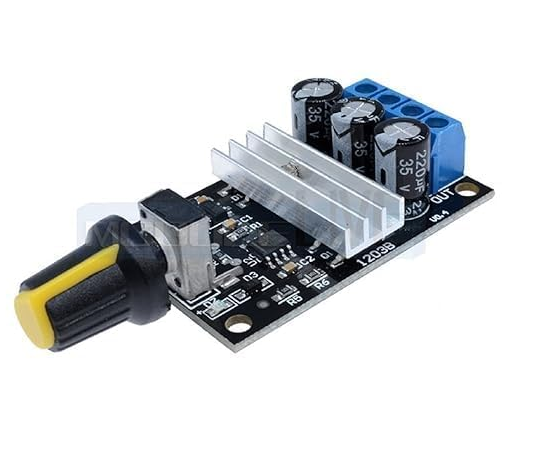

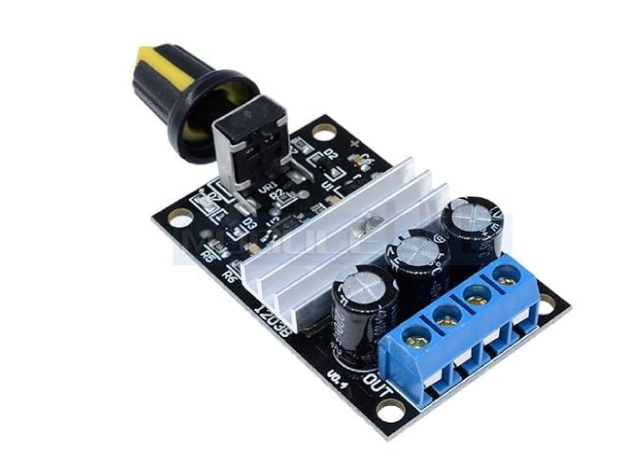

Pwm controller - 3A

1. Voltage range: DC6V – 28V

2. Current range: Within 3A

3. Switch function: None

4. Speed range: 0-100%

5. Dimension: 65 x 30 x 15mm

6. Weight: 25 g

This 1203B PWM 6V 12V 24V 28V 3A DC Motor Speed Regulator allows controlling the speed of a motor with fully adjustable 0%-100%. The motor speed controller can easily provide a continuous current of 3A to your DC motor or other DC load.

Application:

• This PWM Speed controller is for DC 6V 12V 24V 28V Motor.

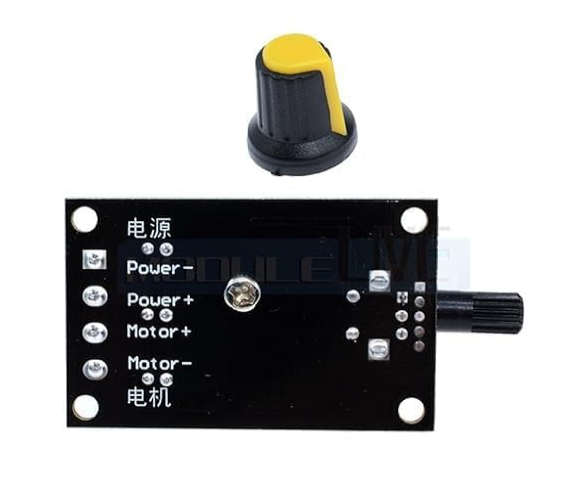

Pinouts:

• Motor+: Motor Positive Terminal

• Motor-: Motor Negative terminal

• Power+: DC 6V – 28V

• Power-: Gnd

Features:

• Speed of a motor is fully adjustable

• DC 6V 12V 24V 28V Supported
