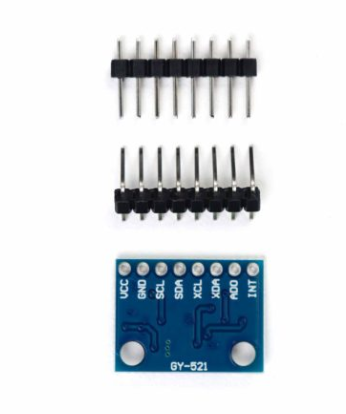

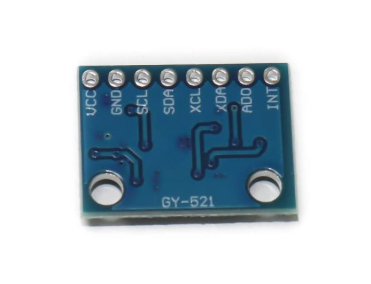

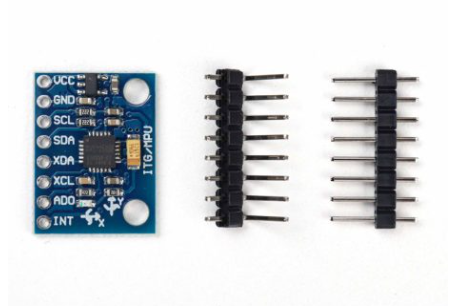

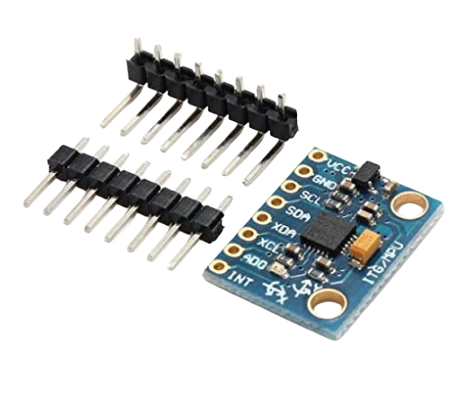

MPU-6050 3-Axis Accelerometer and Gyro Sensor

1. Chip built-in 16bit AD converter, 16-bit data output

2. Driver Chip: MPU6050

3. Operating Voltage: 3-5V DC

4. Communication: I2C/IIC Protocol

5. Gyro Range: ± 250, 500, 1000, 2000 °/s

6. Accelerometer Range: ± 2 ± 4 ± 8 ± 16 g

Features :

1. Chip built-in 16bit AD converter, 16-bit data output.

2. I2C Digital-output of 6 or 9-axis MotionFusion data in rotation matrix, quaternion, Euler Angle, or raw data format.

3. Selectable Solder Jumpers on CLK, FSYNC, and AD0.

4. Digital Motion Processing™ (DMP™) engine offloads complex MotionFusion, sensor timing synchronization, and gesture detection.

5. Embedded algorithms for run-time bias and compass calibration. No user intervention is required.

6. Digital-output temperature sensor.

Package Includes:

1 x MPU-6050 Gyro Sensor 2 + Accelerometer.

1 x 1*8 Burg connector Pins(Right angle).

1x 1*8 Burg connector Pins(Straight).
