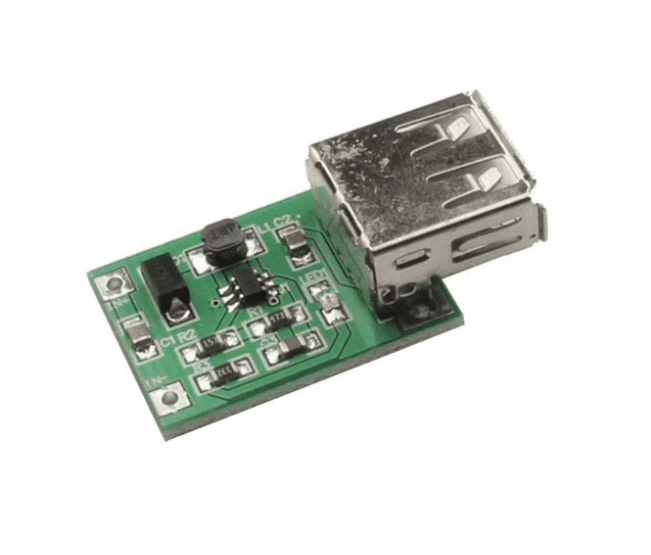

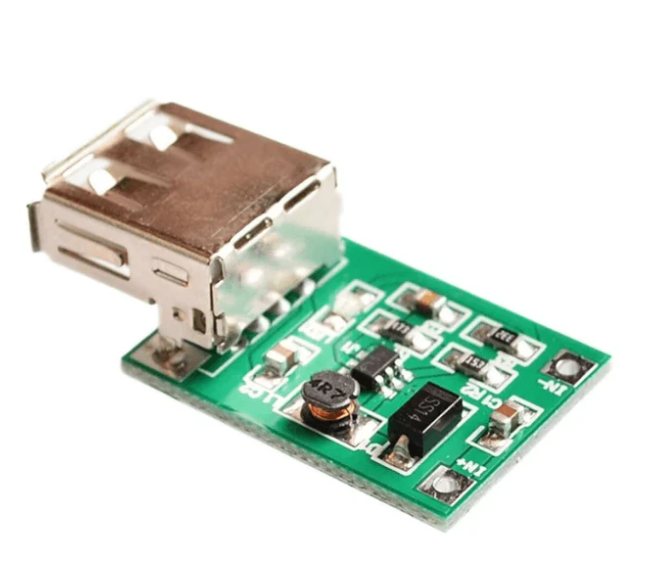

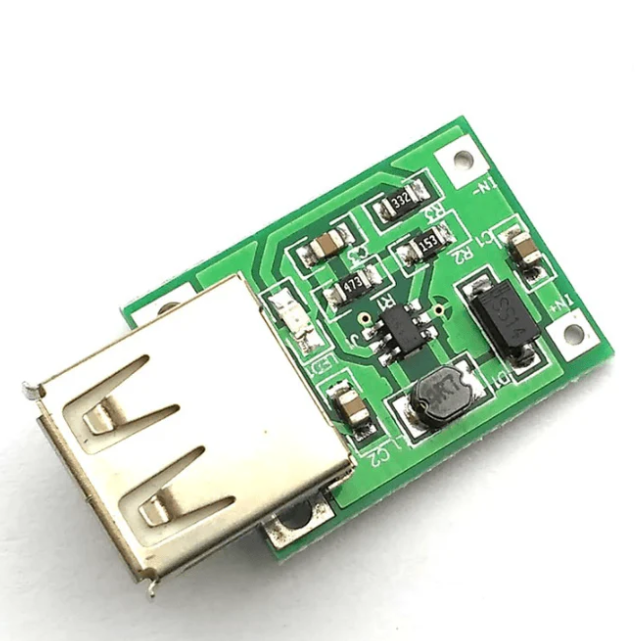

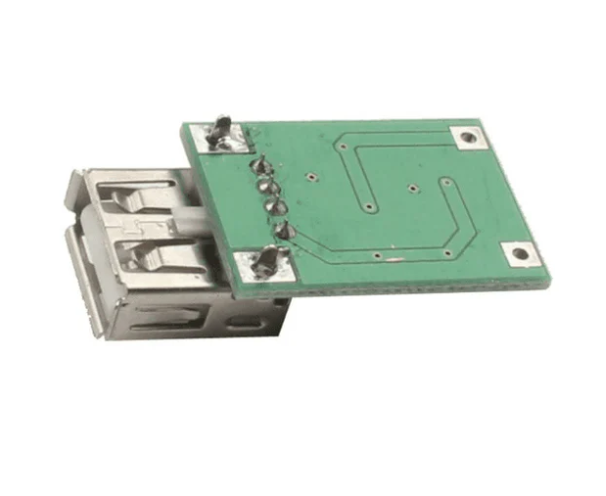

Mini DC-DC Boost Converter 0.9V-5V to 5V 600MA USB Output charger Step-Up Power Module

Input voltage: 0.9-5V DC

Output voltage: 5V DC

Output Current: 500-600mA

Load regulation: ±1%

Voltage regulation: ±0.5%

Switching frequency: 500KHz

Mini DC-DC Boost Converter 0.9V-5V to 5V 600MA USB Output charger Step-Up Power Module

This module is ideal for designing a portable charger, as it can convert 0.9-5V input to 5V output for many digital devices. It can also be used for USB charger projects and onboard USB device supply solutions, such as GoPro cameras.

You can power it with a single-cell LiPO, an AA battery, or other sources. With two AA batteries, it can provide 500 ~ 600MA of current, and with one AA battery, it can provide 200ma of current. This is great for supplying mobile phones, cameras, microcontrollers, and other digital products.

Applications:

1. USB voltage regulator for USB-powered device.

2. This module will bring the USB voltage required for your application at regulated 5V output.

3. Various USB devices need 5V from low voltage batteries.

4. Charge mobile phone/MP4/MP3 from AA battery when traveling

Features

1. The module adopts a high-performance imported chip, performance is superior to the common module.

2. Work with indicator light.

3. Take the USB female, a wide range of Uses.

4. A single AA battery power supply can output current up to 200~300 ma.

5. Two AA batteries to the output current of 500~600 mA.

6. Work from battery voltage as low as 0.9V, allowing you to maximize battery use.

7. If your USB device is critical on 5V operation you can use this module.

Specifications

1. Input voltage: 0.9-5V DC

2. Output voltage: 5V DC

3. Output Current: 500-600mA

4. Load regulation: ±1%

5. Voltage regulation: ±0.5%

6. Input Terminals: Input: IN + input is level, IN-type negative

7. Switching frequency: 500KHz

8. Temperature Range: -40℃ to +85℃

9. Dimension: 18 (mm) x 25 (mm)

10. Weight : 5 g
