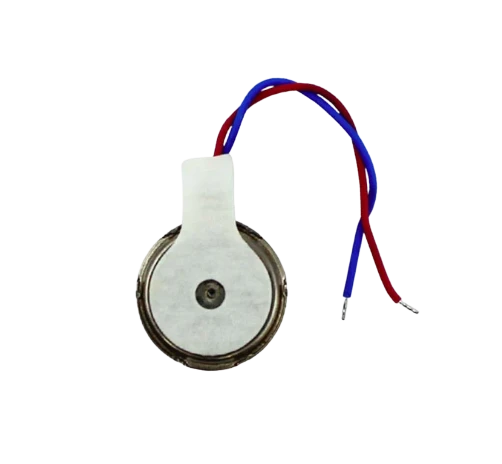

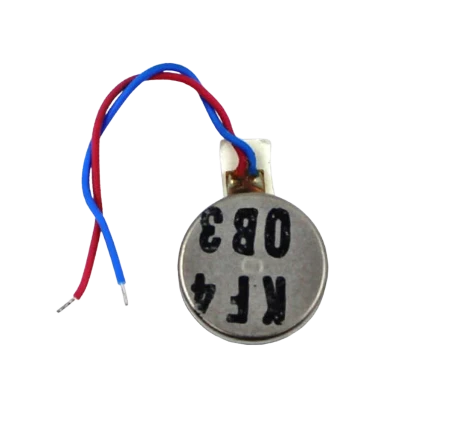

Micro Coin Vibration Motor (Page Motor) - 10mm

This is a small sized and Shaftless Vibration Motor for non-audible vibration applications. It can be integrated with many applications as it comes in small size and in the shape of a circular disc and all moving parts are protected inside the housing disc. They vibrate because they have eccentric weight rotating inside the case which makes the whole motor vibrate when powered. The Motor comes with a 3M adhesive backing and reinforced connection wires. Due to its small size and enclosed vibration mechanism, it is widely used in electric toys, telephones, game controllers, massage machines, etc. They are also widely used in haptic feedback, discreet alerts, and precision alarm applications.

Specifications

• Min. Rated Speed: 9000RPM

• Motor Diameter: 10 mm

• Voltage Range: DC 2.5-4V

• Max. Rated Current: 90mA

• Motor Thickness: 2.7 mm
