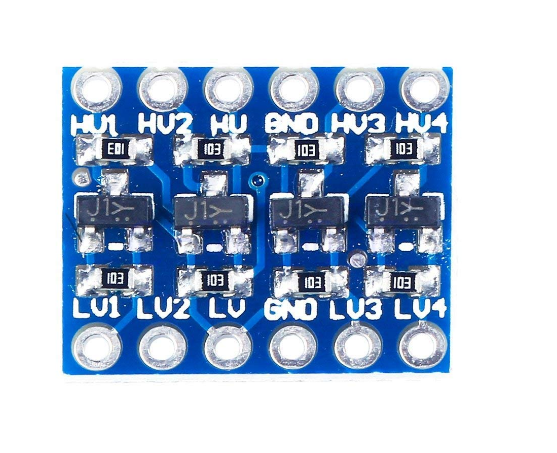

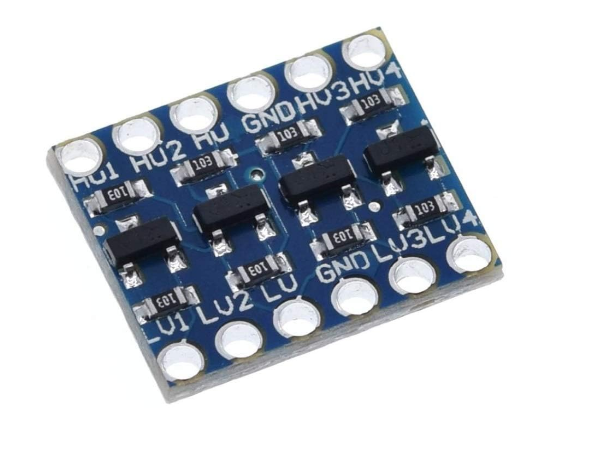

Level Converter

1. Material: ABS + metal

2. Dimensions: 16 x13 x 3 (L x W x H) mm

3. Weight: 2gm

4. Mutual transform between 5V TTL and 3.3V TTL

5. Four channels of logic and high voltage low voltage logic can two-way transform

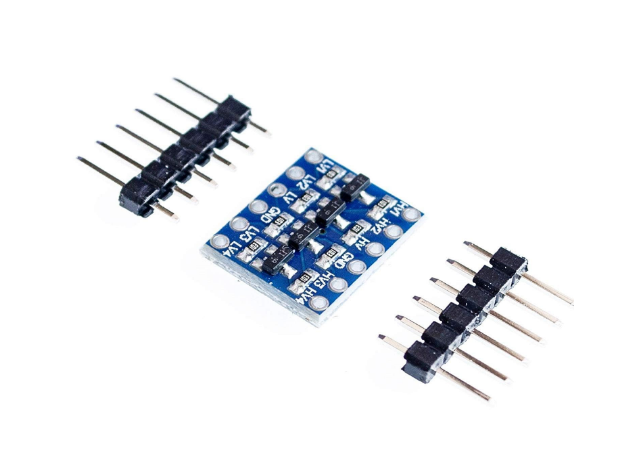

6. Portable and lightness, with 2 rows 6 pin contact pins

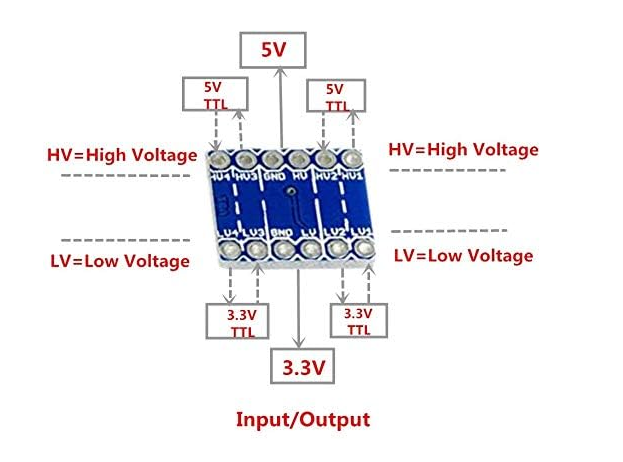

How to use:

1. High voltage (5V for example) to the ‘HV’ pin

2. Low voltage (3.3V for example) to ‘LV’

3. Gound from the system to the ‘GND’ pin.

Specifications and Features:

1. Mutual transform between 5V TTL and 3.3V TTL

2. Four channels of logic and high voltage low voltage logic can two-way transform

3. Portable and lightness, with 2 rows 6 pin contact pins

4. Level Converter- 4 ChannelCompatible with the bread plate, can be used directly put on the breadboard

5. 4 Channel Module (great for I2C or SPI) and will work with all microcontrollers, Arduino, Raspberry Pi, Intel Edison, NXP Mbed
