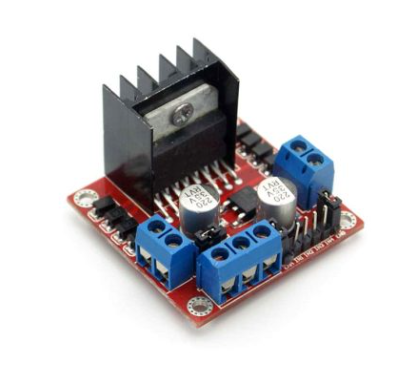

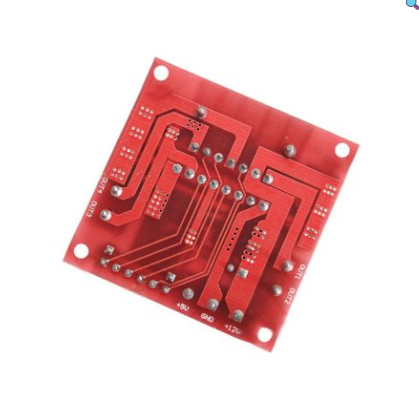

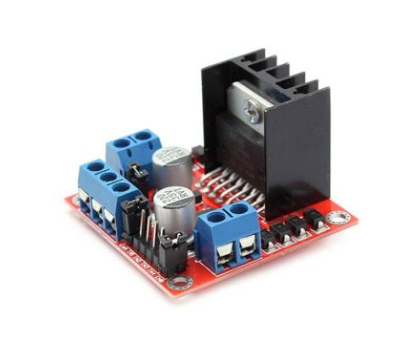

L298N 2A Based Motor Driver Module – Good Quality

1. Logical voltage: 5V

2. Drive voltage: 5V-35V

3. Logical current: 0-36mA

4. Drive current: 2A (max. single bridge)

5. Max power: 25W

6. Dimensions: 44 x 44 x 28 (LxWxH)mm

7. Weight: 26 gm

This L298N Based Motor Driver Module – 2A is a high power motor driver perfect for driving DC Motors and Stepper Motors. It uses the popular L298 motor driver IC and has the onboard 5V regulator which it can supply to an external circuit. It can control up to 4 DC motors, or 2 DC motors with directional and speed control

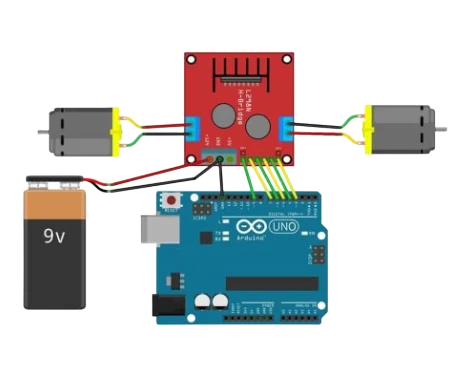

This L298N Based Motor Driver Module – 2A is perfect for robotics and mechatronics projects and perfect for controlling motors from microcontrollers, switches, relays, etc. Perfect for driving DC and Stepper motors for micro mouse, line-following robots, robot arms, etc.

Pins:

1. Out1: Motor A lead out

2. Out2: Motor A lead out

3. Out3: Motor B lead out

4. Out4: Mo (Can actually be from 5v-35v, just marked as 12v)

5. GND: Ground

6. 5v: 5v input (unnecessary if your power source is 7v-35v, if the power source is 7v-35v then it can act as a 5v out)

7. EnA: Enables PWM signal for Motor A (Please see the “Arduino Sketch Considerations” section)

8. In1: Enable Motor A

9. In2: Enable Motor A

10. In3: Enable Motor B

11. In4: Enable Motor B

12. EnB: Enables PWM signal for Motor B (Please see the “Arduino Sketch Considerations” section)

Usage:

H-bridges are typically used in controlling motors’ speed and direction but can be used for other projects such as driving the brightness of certain lighting projects such as high powered LED arrays.

Features:

1. Current Sense for each motor.

2. Heatsink for better performance.

3. Power-On LED indicator.

4. Drives up to 4 motors.
