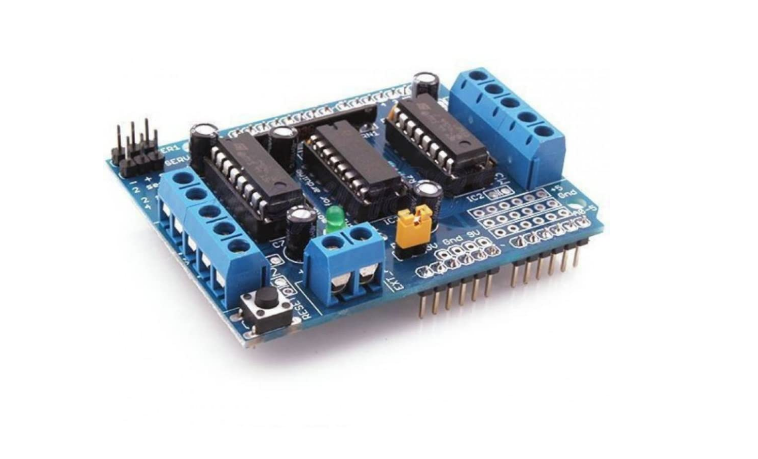

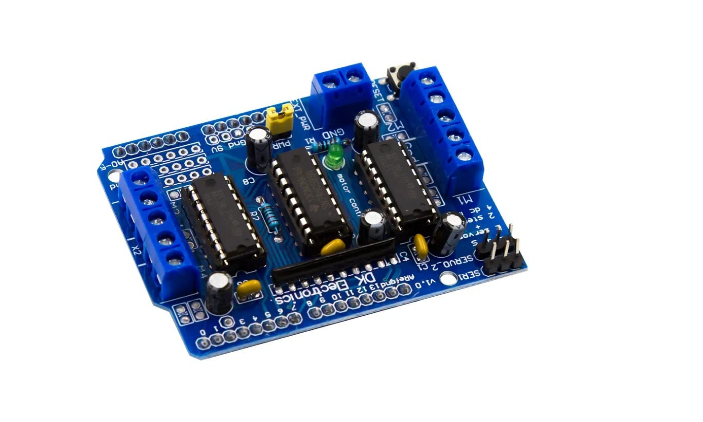

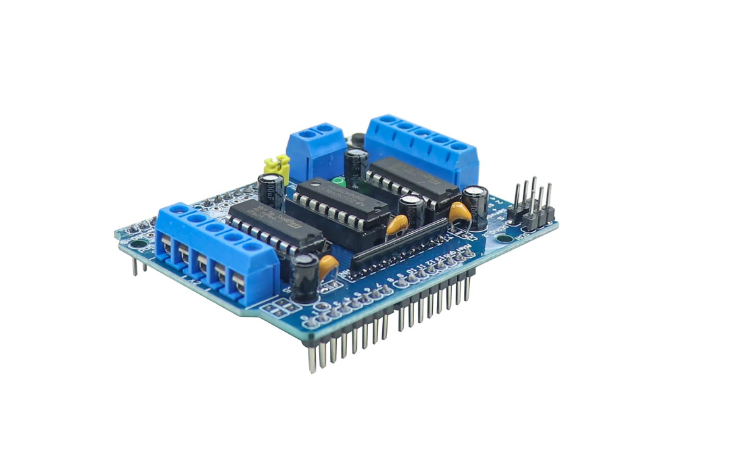

L293D Motor Driver/Servo Shield for Arduino
₹210.00₹140.00
Out of stock
2 connections for 5V ‘hobby’ servos connected to the Arduino’s high-resolution dedicated timer
4 H-Bridges: L293D chipset provides 0.6A per bridge (1.2A peak) with thermal shutdown protection, internal kickback protection diodes.
Can run motors on 4.5VDC to 25VDC.
Up to 4 bi-directional DC motors with individual 8-bit speed selection (so, about 0.5% resolution)
Up to 2 stepper motors (unipolar or bipolar) with single coil, double coil, or interleaved stepping.

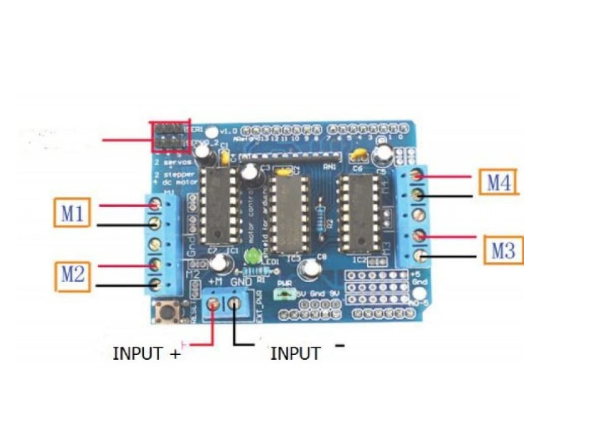

The L293D Motor Driver/Servo Shield for Arduino is probably one of the most versatile on the market and features 2 servo and 4 motor connectors for DC or stepper motors. That makes it a great shield for any robotic project.
Features :
2 connections for 5V ‘hobby’ servos connected to the Arduino’s high-resolution dedicated timer
4 H-Bridges: L293D chipset provides 0.6A per bridge (1.2A peak) with thermal shutdown protection, internal kickback protection diodes. Can run motors on 4.5VDC to 25VDC.
Up to 4 bi-directional DC motors with individual 8-bit speed selection (so, about 0.5% resolution)
Up to 2 stepper motors (unipolar or bipolar) with single coil, double coil, or interleaved stepping.
Pull-down resistors keep motors disabled during power-up
Big terminal block connectors to easily hook up wires (18-26AWG) and power
Arduino reset button brought up top
2-pin terminal block and jumper to connect external power, for separate logic/motor supplies
Tested compatible with Arduino Mega 1280 & 2560, Diecimila, Duemilanove, and UNO
Download the easy-to-use Arduino software library, check out the examples and you’re ready to go!
