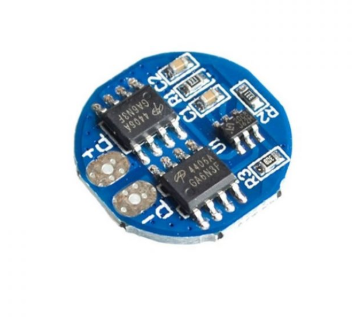

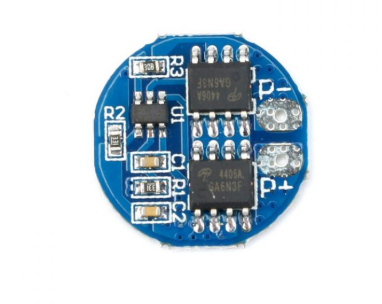

HX-2S-A2 Circular 2S 8.4V BMS 18650 Lithium Battery Protection Plate - Round

1. Overcharge voltage range: 4.25-4.35v ± 0.05v

2. Charging voltage: 8.4V-9V

3. Upper limit operating current: 5A

4. Upper limit instantaneous current: 7A

5. Quiescent current: less than 10uA

6. Internal resistance: less than 300mΩ

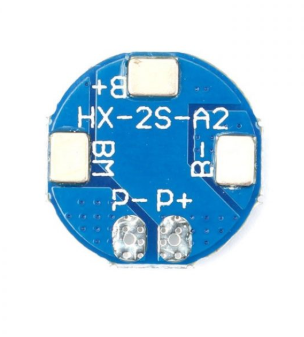

Connector :

• B +:   Connected to the battery positive

• B-: Connected battery negative

• MB: Connect the battery 1 to the connection point before battery 2

• P + :  Charge / discharge side positive (shared charge / discharge side)

• P- :    Connection / discharge terminal negative (charge / discharge side shared)

Features :

1. It is safe and reliable to use.

2. Small and compact.

3. Easy connections.

Package Includes :

1 x HX-2S-A2 Circular 2S 8.4V BMS 18650 Lithium Battery Protection Plate
