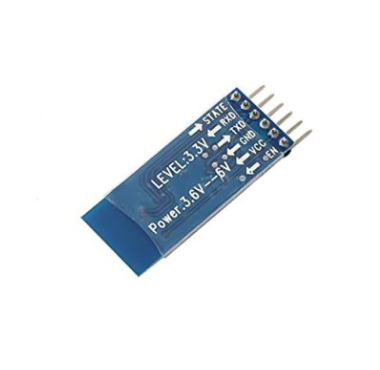

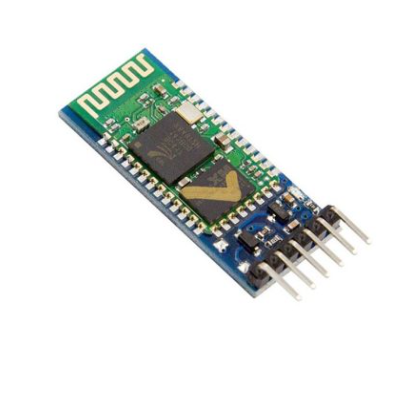

HC-05 TTL Bluetooth Transceiver Module (Without Button)

1. Bluetooth protocol: Bluetooth Specification v2.0+EDR

2. Frequency: 2.4GHz ISM band

3. Modulation: GFSK(Gaussian Frequency Shift Keying)

4. Emission power: ≤4dBm, Class 2

5. Sensitivity: ≤-84dBm at 0.1% BERCSR Bluetooth Chip Solution

6. Enhanced Data Rate (EDR) compliant with V2.0.E.2 of the specification for both 2Mbps and 3Mbps modulation modes

7. Full Speed Bluetooth Operation with Full Piconet Support and Scatternet Support

8. Incredible small size with 3.3V input, and RoHS Compliant

9. UART interface and with baud rate setup function

HC-05 Applications:

1. Embedded Projects

2. Industrial Applications

3. Computer and portable Devices

4. GPS receiver.   etc.

Features :

1. CSR Bluetooth Chip Solution

2. Bluetooth Spec v2.0 EDR Compliant

3. Enhanced Data Rate (EDR) compliant with V2.0.E.2 of the specification for both 2Mbps and 3Mbps modulation modes

4. Full Speed Bluetooth Operation with Full Piconet Support and Scatternet Support

5. Incredible small size with 3.3V input, and RoHS Compliant

6. UART interface and with baud rate setup function

7. Support for 8Mbit External Flash Onboard

8. Support for 802.11Co-Existence.

9. A range of operation: 8 – 10 meter.

Package Includes :

1 x HC-05 TTL Bluetooth Transceiver Module (Without Button)
