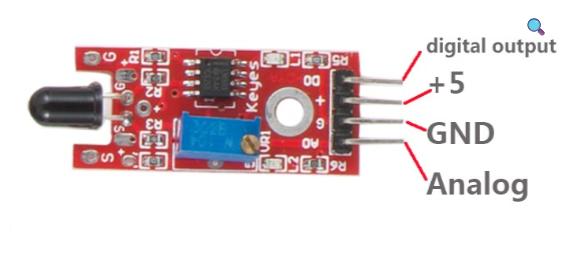

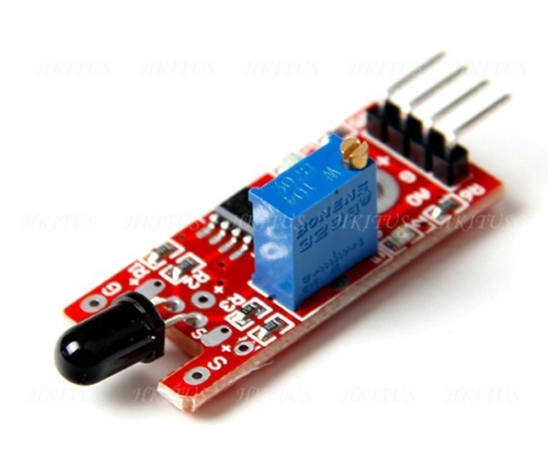

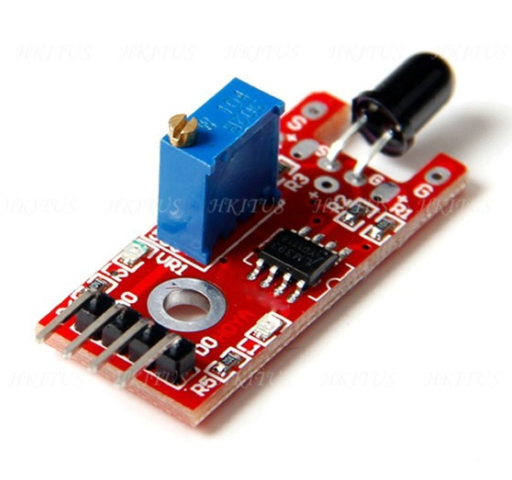

Flame Sensor Module

1. Comparator chip LM393 makes module readings stable.

2. Operating voltage 3.3V-5V.

3. Fast Response Time

4. Sensitivity adjustable

5. Detects a flame or a light source of a wavelength in the range of 760nm-1100 nm.

6. Detection range: up to 100 cm.

7. Adjustable detection range.

8. Detection angle about 60 degrees, it is sensitive to the flame spectrum.

The Flame Sensor Module can detect flames in the 760 – 1100 nanometer wavelength range. Small flames like a lighter flame can be detected at roughly 0.8m. The detection angle is roughly 60 degrees and the sensor is particularly sensitive to the flame spectrum.

This Flame Sensor Module is used to detect fire/flame source or other light sources of the wavelength in the range of 760nm – 1100 nm. It is based on the YG1006 sensor which is a high speed and high sensitive NPN silicon phototransistor. Due to its black epoxy, the sensor is sensitive to infrared radiation.

The sensor can be a great addition in a firefighting robot, it can be used as a robot eyes to find the fire source. When the sensor detects flame the Signal LED will light up and the D0 pin goes LOW.

Features :

1. High Photo Sensitivity

2. Fast Response Time

3. Sensitivity adjustable

4. Detects a flame or a light source of a wavelength in the range of 760nm-1100 nm.

5. Detection range: up to 100 cm.

6. Adjustable detection range.

7. Detection angle about 60 degrees, it is sensitive to the flame spectrum.

8. Comparator chip LM393 makes module readings stable.

9. Operating voltage 3.3V-5V.

10. Digital and Analog Output.

11. Power indicator and digital switch output indicator.

Package Includes :

1 x Flame Sensor Module
