Dust Sensor (Analog Output) general purpose

1. Compact design: 46.0 × 30.0 × 17.6 mm.

2. Low power: Max 20 mA.

3. Single pulse dust detection.

4. Distinguishes smoke from dust.

5. RoHS compliant and lead-free.

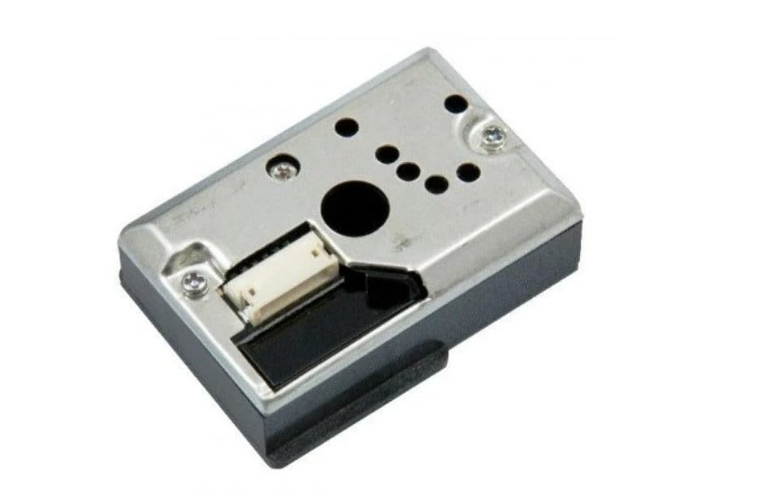

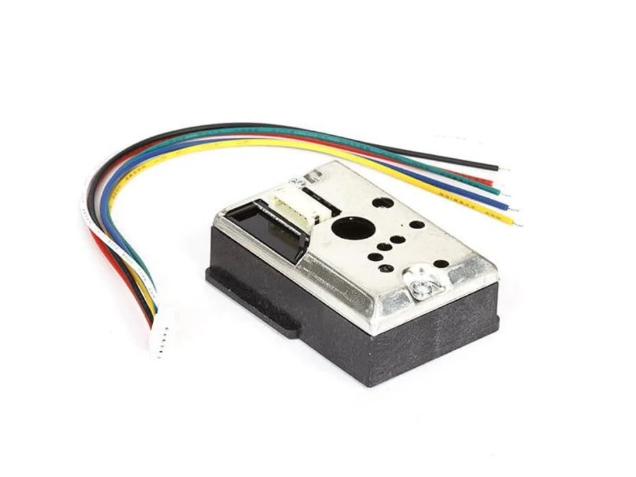

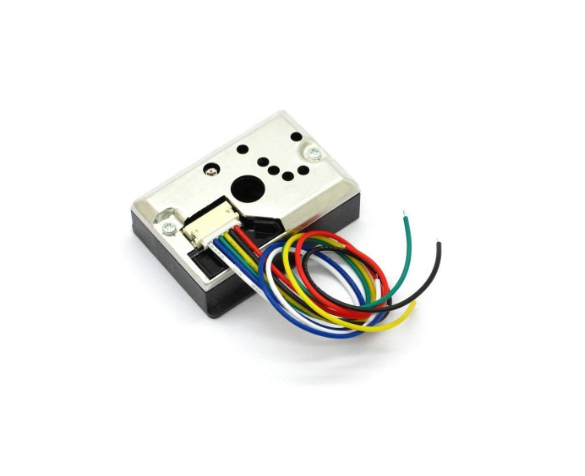

The SHARP GP2Y1010AU0F Dust Sensor (Analog Output) general purpose (0 to 1500 µg/m3)  is an optical dust sensor designed to detect airborne particles. It features a diagonally arranged infrared emitting diode (IRED) and a phototransistor, which sense the reflected light from dust in the air. This sensor is especially effective for detecting fine particles, such as cigarette smoke, and can distinguish smoke from household dust based on the pulse pattern of the output voltage.

Features:

1. Compact and slim design: 46.0 × 30.0 × 17.6 mm.

2. Low power consumption: Max 20 mA.

3. Detects dust with a single photometric pulse.

4. Distinguishes smoke from house dust.

5. Lead-free and environmentally friendly.

Applications:

1. Dust detection in air.

2. Ideal for devices such as: Air purifiers , Air conditioners ,Air quality monitors
