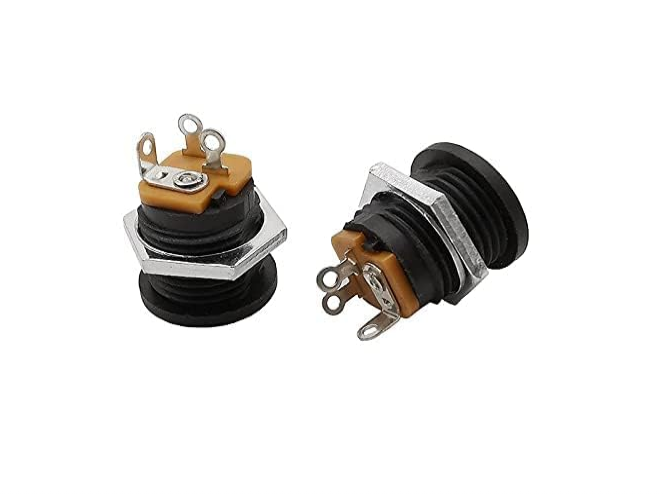

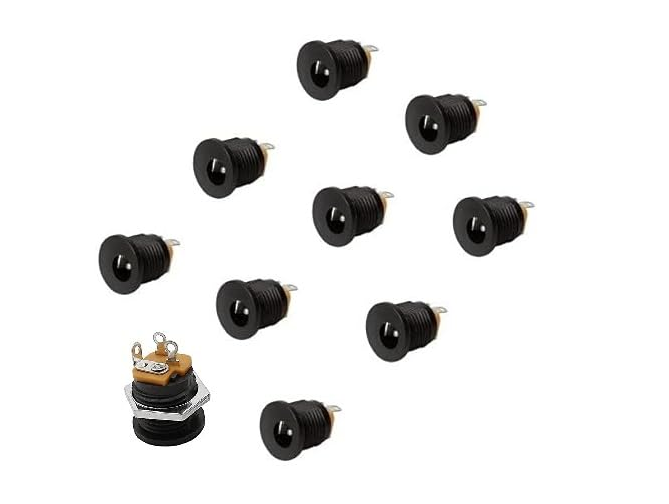

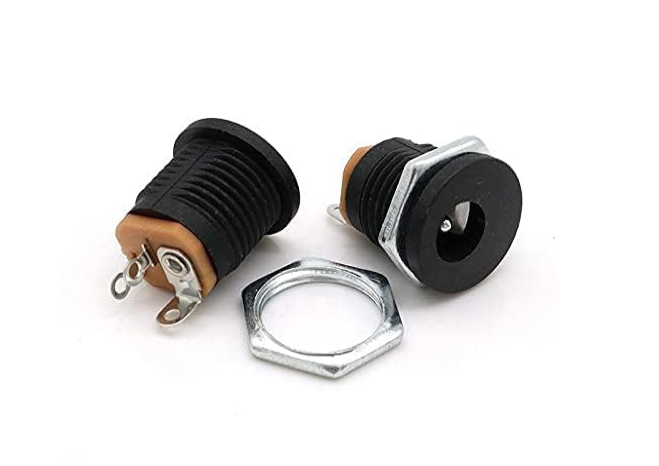

DC 12V Female Socket - Power Supply

1. Plug Type: 5.5 x 2.1mm

2. Pin: 3

3. Temperature: -30°C ~ +70°C.

4. Rated load: up to DC 30V / 1.0A.

5. Contact resistance: ≤0.03.

6. Insulation resistance: ≥100 MΩ.

DC-005 Female DC Power Jack Supply Socket 5.5×2.1mm is a good quality power connector compatible with all 5.5 male power jack from different sources.

It is 2.1×5.5mm PCB mountable jack widely used in DIY hobby projects as well as in many robotics application for DC supply voltage connection up to 30 V.

Features:

1. Temperature: -30°C ~ +70°C.

2. Rated load: up to DC 30V / 1.0A.

3. Withstand voltage: AC 500V (50Hz)/min.

4. Actuating force: 3N – 20N.
