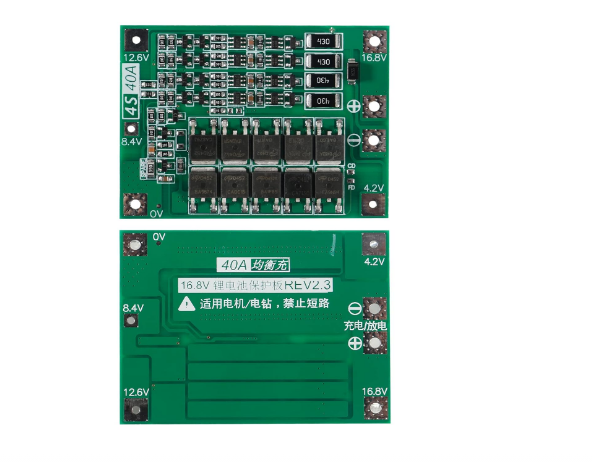

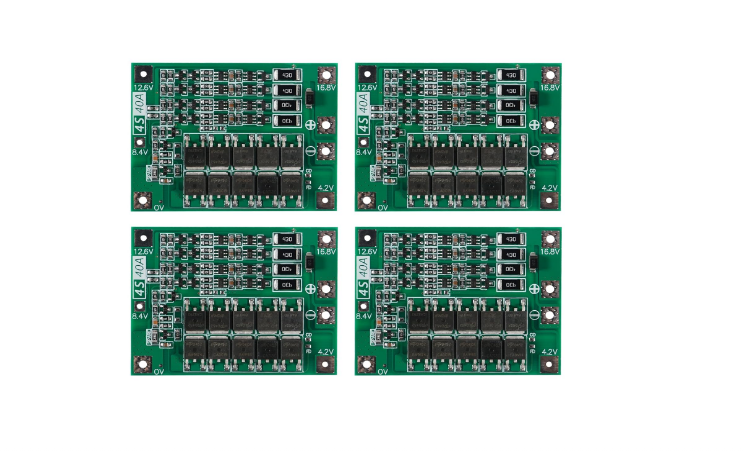

Charging Module 4s

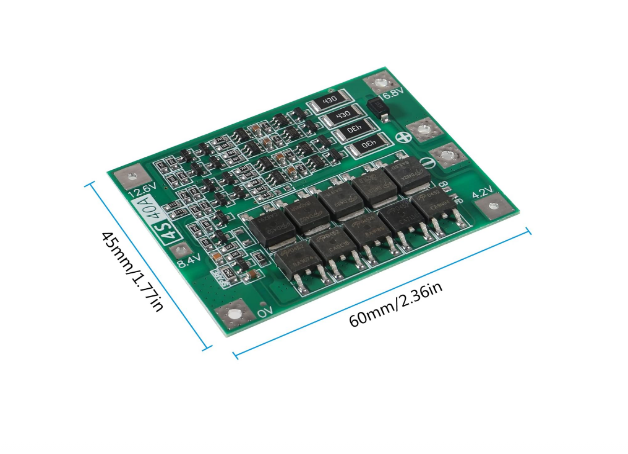

• Small size.

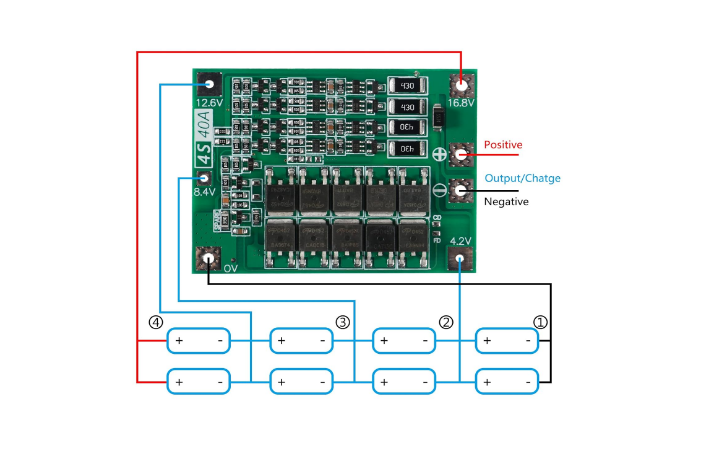

• Simple wiring.

• Targeted.

• Custom installation.

Specifications of Lithium Battery Charger Module

• Voltage range : 4.25~4.35V±0.05V

• Overvoltage range : 2.3~3.0V±0.05V

• Upper working current : 10A

• Working temperature : -40 to +50 Celsius

• Maximum instantaneous current : 20A

• Storage condition : -40 to +80 Celsius

• Static current Less than 30uA

• Effective life More than 50000 hours

• Internal resistance Less than 100m ohm

• Short circuit protection Yes, Charge recovery

• Charging voltage : 16.8V-17V

• Controller : S-8254AA
