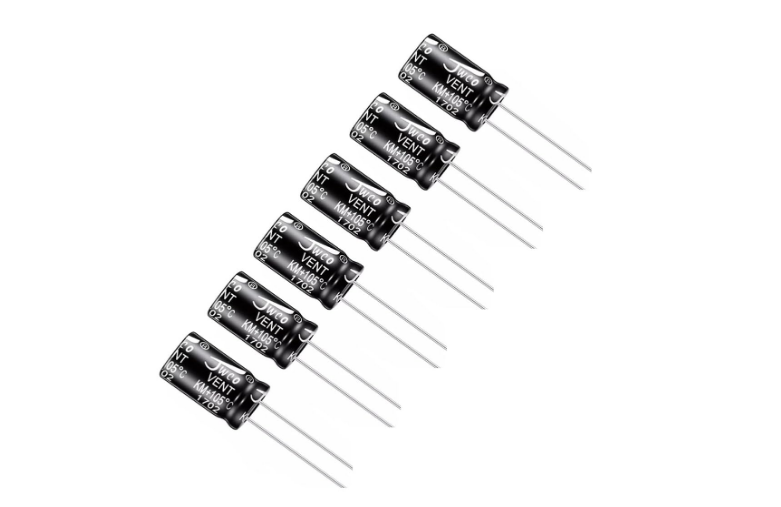

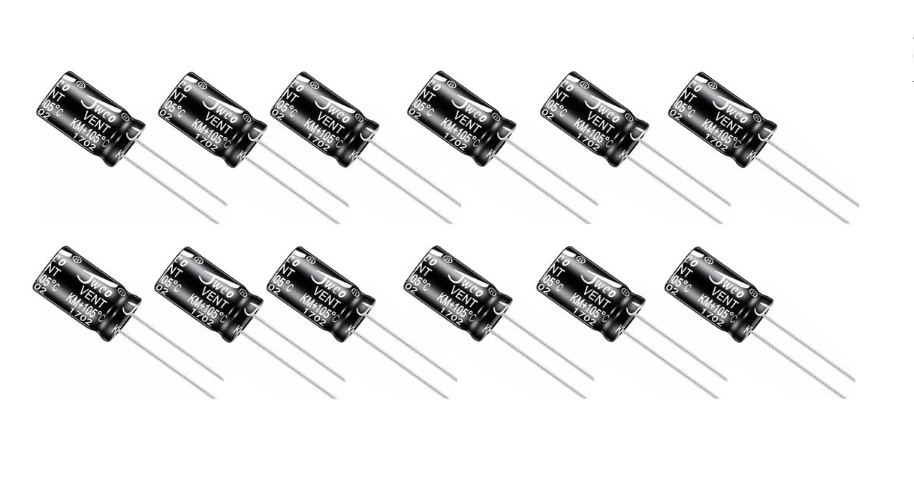

Capacitors 470 μF 16v

Specification

• Rating Voltage = 16V

• Material = Aluminum

• Capacitor Size = 10 x 12.5 mm

• Impedance (O)max. 20°C 1000KHz = 56

• Ripple current = 580

• DC Leakage Current = ≤ 0.01CV (µF) at 20°C

• Capacitance Tolerance = ±20%(M)

• Shelf Life = After storage for 1000Hrs at +105°C with no voltage applied, the capacitor shell meet the specified limits for “Load Life”.

470uf 16V Aluminum Electrolytic Capacitors

Aluminum electrolytic capacitors' capacitance is determined by the aluminum anode foil's surface. Special etching techniques maximize this surface, providing these capacitors with the highest volumetric capacitance of all capacitor technologies and an appealing cost-per-capacitance ratio. Outstanding ripple current capabilities and exceptional long-term reliability are two features of EPCOS aluminum electrolytic capacitors. Aluminum electrolytic capacitors find extensive applications in the automotive industry as well as in wind power converters, solar inverters, professional power supplies, professional photoflash units, medical applications, and frequency converters. For most applications, they are an affordable and incredibly dependable option.

Features:

• Wide Temperature Range

• Extremely Low Impedance

• High Reliability

• Load Life = 105°C, 2000Hrs

• Excellent ripple current ability and low impedance

• Best Quality Product
