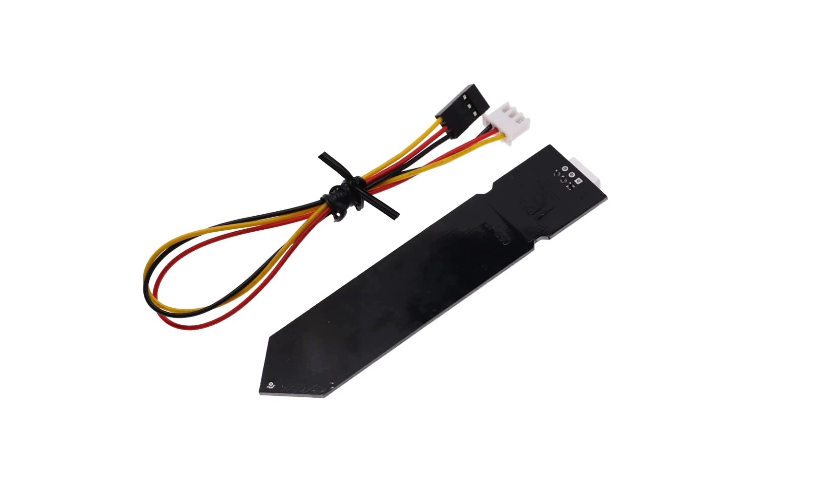

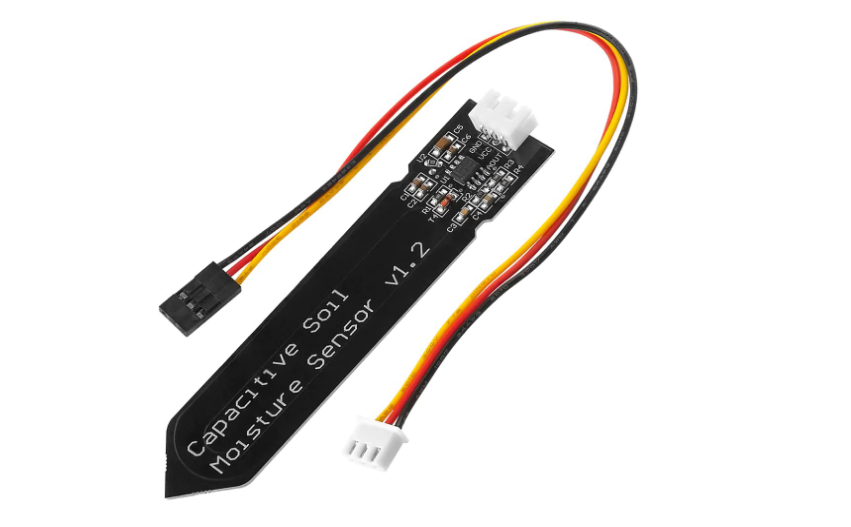

Capacitive Soil Moisture Sensor

1. Operating Voltage: 3.3 ~ 5.5 VDC.

2. Operating Current: 5mA.

3. Interface: PH2.54-3P.

4. Dimensions mm(LxWxH): 98 x 23 x 4.

5. Supports 3-Pin Gravity Sensor interface

6. Analog output.

7. Weight (gm): 15.

This Capacitive soil moisture sensor measures soil moisture levels by capacitive sensing rather than resistive sensing like other sensors on the market. It is made of corrosion-resistant material which gives it excellent service life. Insert it into the soil around your plants and impress your friends with real-time soil moisture data!

This module includes an onboard voltage regulator which gives it an operating voltage range of 3.3 ~ 5.5V. It is perfect for low-voltage MCUs, both 3.3V, and 5V. For compatibility with a Raspberry Pi, it will need an ADC converter.

This soil moisture sensor is compatible with our 3-pin “Gravity” interface, which we can connect to the Gravity I/O expansion shield.

Applications:

1. Garden plants

2. Moisture detection

3. Intelligent agriculture

Features:

1. Supports 3-Pin Gravity Sensor interface

2. Analog output

Package Includes:

1 x Capacitive Soil Moisture Sensor
