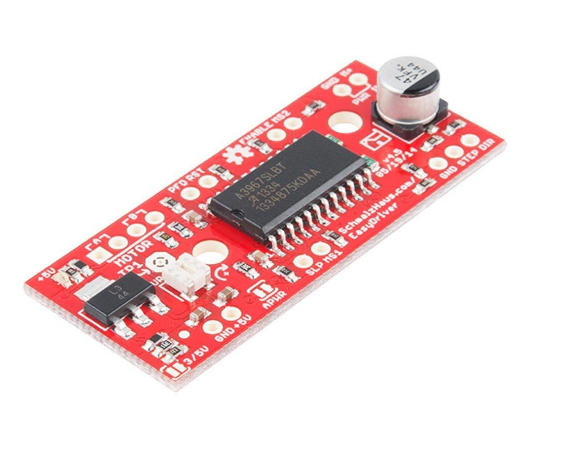

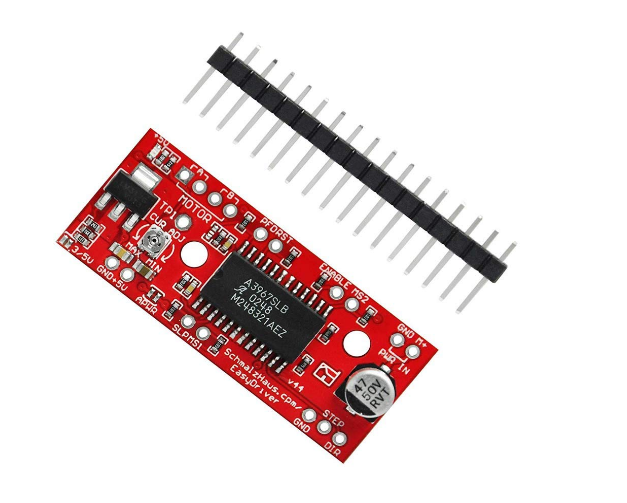

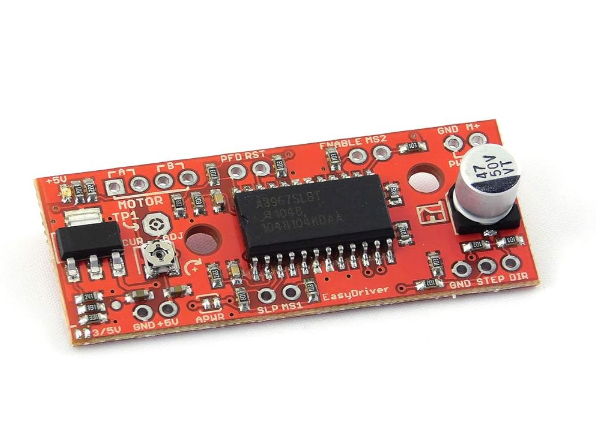

A3967 EasyDriver stepper motor driver

1. Power supply: 7V to 30V.

2. The higher the voltage, the higher the torque at high speeds.

3. Adjustable current control from 150mA/phase to 750mA/phase.

4. Logic voltage: 5V or 3.3V.

5. A3967 microstepping driver.

Features :

1. Adjustable current control from 150mA/phase to 750mA/phase.

2. A3967 microstepping driver.

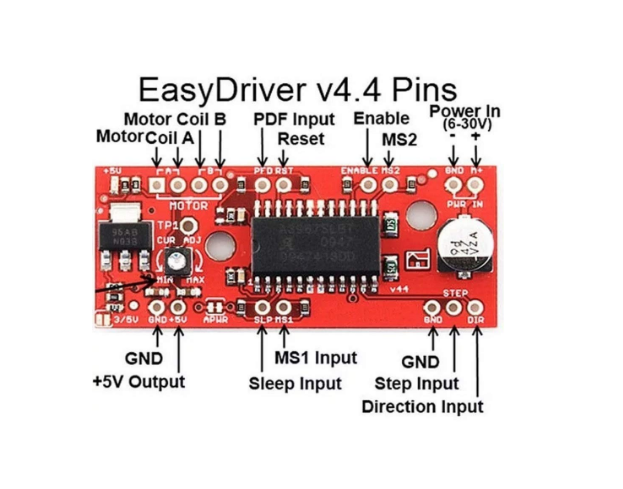

3. MS1 and MS2 pins broken out to change microstepping resolution to full, half, quarter and eighth steps (defaults to eighth).

4. Compatible with 4, 6, and 8 wire stepper motors of any voltage.

Package Includes :

1 x A3967 Stepper Motor Driver board.
