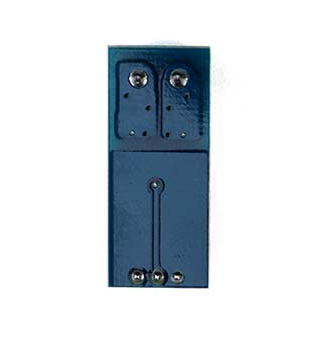

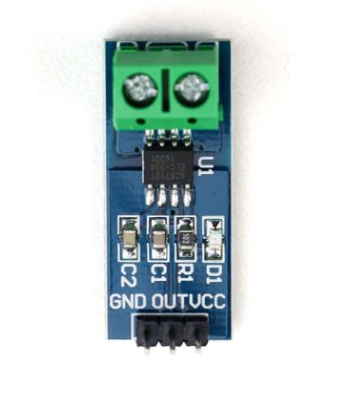

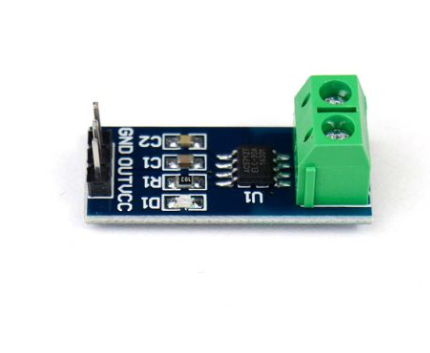

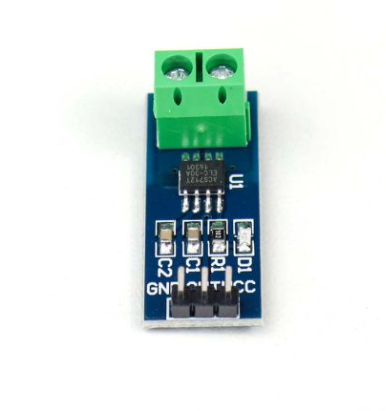

30A range Current Sensor Module ACS712

1. Low-noise analog signal path

2. Device bandwidth is set via the new FILTER pin

3. 5 µs output rise time in response to step input current

4. Small footprint, low-profile SOIC8 package

5. 2.1 kVRMS minimum isolation voltage from pins 1-4 to pins 5-8

6. Supply Voltage: 4.5V~5.5V DC

7. Measure Current Range: 30A

8. Sensitivity: 100mV/A

Features :

1. Low-noise analog signal path

2. Device bandwidth is set via the new FILTER pin

3. 5 µs output rise time in response to step input current

4. Small footprint, low-profile SOIC8 package

5. 2.1 kVRMS minimum isolation voltage from pins 1-4 to pins 5-8

6. 5.0 V, single supply operation

7. 66 to 185 mV/A output sensitivity

8. Output voltage proportional to AC or DC currents

9. Factory-trimmed for accuracy

10. Extremely stable output offset voltage

11. Nearly zero magnetic hysteresis

12. The ratiometric output from the supply voltage.

Package Includes :

1 x 30A Range Current Sensor Module ACS712.
