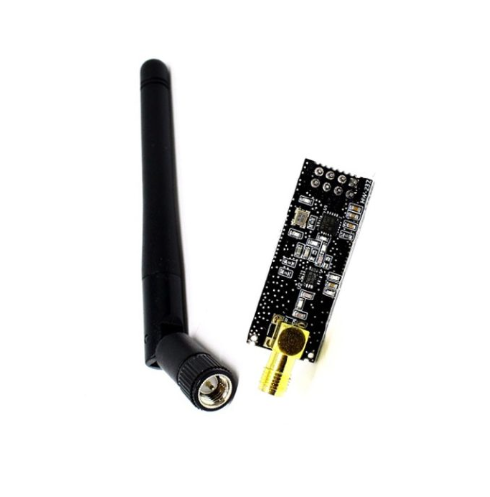

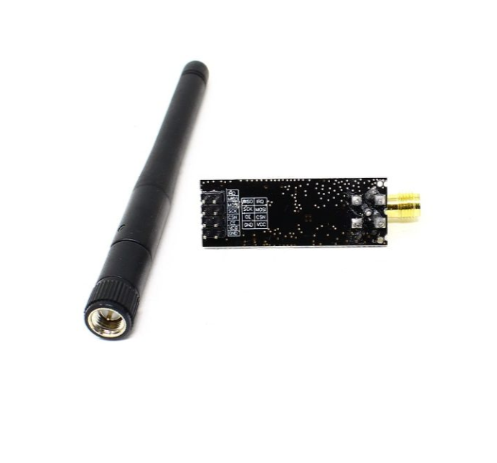

2.4GHz NRF24L01+PA+LNA SMA Wireless Transceiver Antenna

1. Voltage: 3-3.6V (recommended 3.3V) V.

2. Maximum output power: +20dBm.

3. Power-down mode current: 4.2uA.

4. Operating Range: 1Km

5. Antenna Gain (peak): 2Dbi.

6. 2MB rate (Open area): 520m.

7. 1MB rate (Open area): 750m.

8. 250Kb rate (Open area): 1100m.

9. Receive Mode Current(peak): 45mA

10. It uses 2.4GHz global open ISM band, with license free.

11. SPI interface facilitates the communication with MCU I/O port.

Features :

1. It uses 2.4GHz global open ISM band, with license-free.

2. Transmit power is greater than +20 dBm.

3. Support six-channel data reception.

4. 2Mbit/s speed makes high-quality VoIP possible

5. Multi-frequency points: 125 frequency points meet the needs of multi-point communications and frequency hopping.

6. Low cost: integrated with high-speed signal processing parts associated with RF protocol, such as: automatically re-send lost packets and generate acknowledge signal;

7. SPI interface facilitates the communication with MCU I/O port.

8. Facilitate the development for customers, without development RF part.

9. Software programming is fully compatible with NRF24L01 modules.

Package Includes :

1 x 2.4GHz NRF24L01 Transceiver module.

1 x SMA Antenna.
