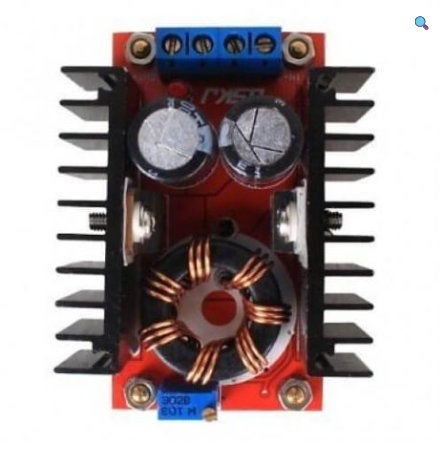

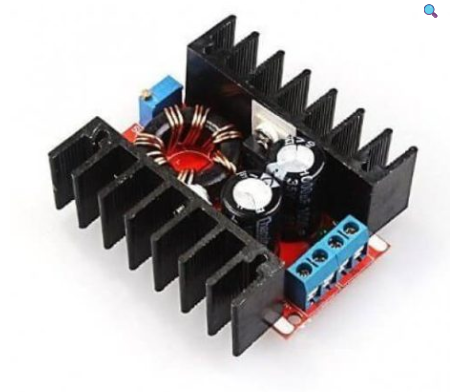

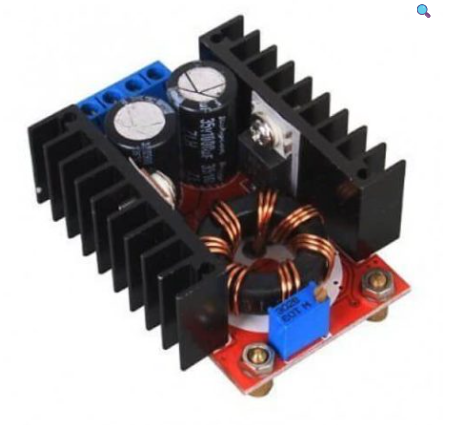

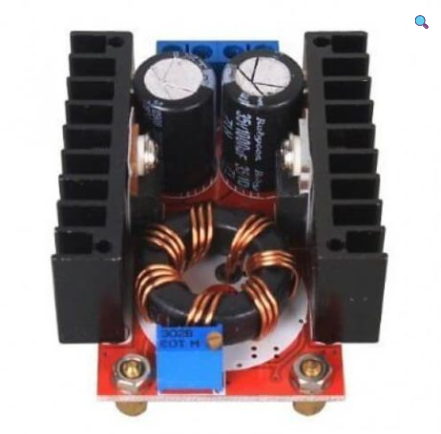

150W DC-DC Boost Converter 10-32V to 12-35V 6A Step-Up Adjustable Power Supply

1. Input voltage :10-32V

2. Output voltage: 12-35V (adjustable)

3. Output Current: 10A (MAX)

4. Input Current: 16A (MAX) (Please enhance heat dissipation if more than 10A)

5. The non-isolated step-up power conversion module

6. Onboard LED illuminates when the voltage is applied to the module

7. Equips Multi-turn Potentiometer.

Applications:

1. DIY adjustable output vehicle power supply. Provide 12V input, the output voltage can be continuously adjusted from 14V to 35V (output voltage cannot be lower than the input voltage).

2. Universal car laptop power supply. Provide 12V input, the output voltage is adjustable to your notebook to work. Can easily drive dual-core or quad-core notebooks at 19V and up to 6A output current.

3. Boost Charger, to convert your car’s 12V power to greater than 12V, such as 18V or 24V

4. Power supply for your electronic devices, as long as the voltage is adjusted to the voltage and does not exceed the module’s rated current.

Features :

1. The non-isolated step-up power conversion module

2. Onboard LED illuminates when the voltage is applied to the module

3. Equips Multi-turn Potentiometer.

4. Easy to drive 65W 90W dual-core notebook.

5. The output voltage is continuously adjustable on OUT+ and OUT- screw terminals (Output voltage must be greater than input voltage)

Package Includes :

1 x 150W 10-32V to 12-35V 6A DC-DC Boost Converter Module
