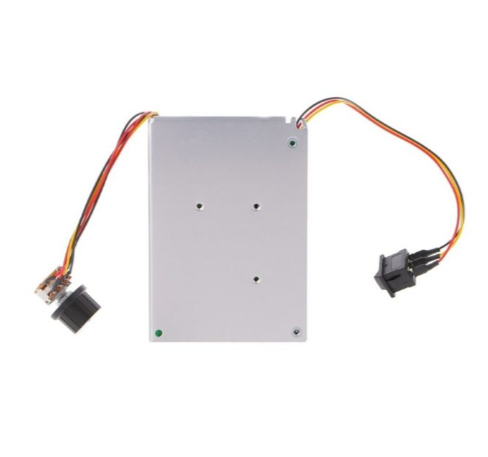

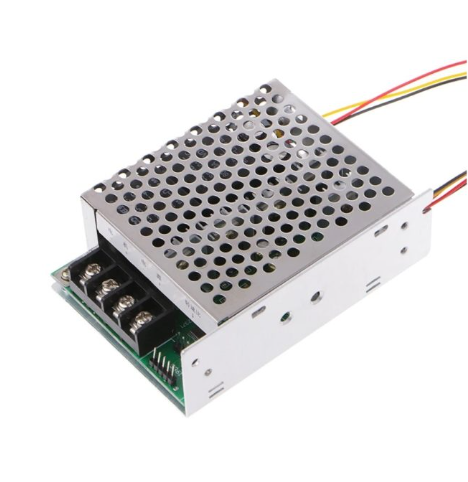

12V 24V 36V 40A PWM DC Motor Speed Controller Forward Reverse Adjustable Knob Switch with Case

1. Input voltage: DC12 to 36V (equal to the rated voltage of the motor)

2. Output voltage: linear under load

3. Maximum current: 50A

4. Continuous current: 40A

5. Support motor: DC brush motor

12V 24V 36V 40A PWM DC Motor Speed Controller Forward Reverse Adjustable Knob Switch with Case.

This is High Power 12V/24V/36V 40A PWM DC Reversible Motor Controller.  A motor controller is a device or group of devices that serves to govern in some predetermined manner the performance of an electric motor. A motor controller might include a manual or automatic means for starting and stopping the motor, selecting forward or reverse rotation, selecting and regulating the speed, regulating or limiting the torque, and protecting against overloads and faults.

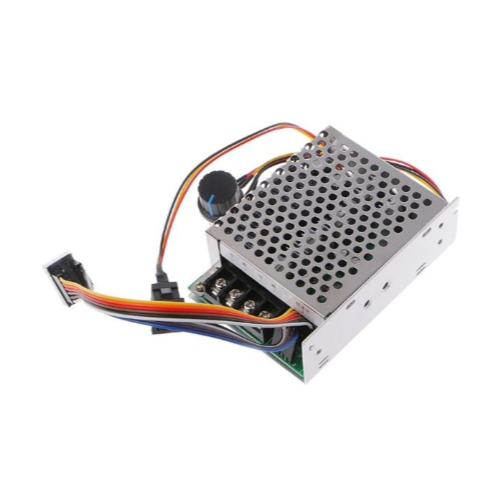

The 40A PWM controller is equipped with High Power automotive relays, a Knob to adjust the output operating Voltage, a toggle rocker switch to change motor rotation forward-reverse direction, and a 3-digit seven-segment LED display to show the selected Voltage.

Features:

1. Input voltage: DC12 to 36V (equal to the rated voltage of the motor)

2. Output voltage: linear underload

3. Maximum current: 50A

4. Continuous current: 40A

5. Speed regulation type: current regulation

6. Speed regulation mode: potentiometer (linear)

7. Support motor: DC brush motor

8. Rotation:  Toggle Forward and reverse

9. Speed range: 0——100%

10. Wiring type: terminal Knob

11. Potentiometer: 100K (with switch)

12. Wiring type: fence terminal block

13. Product weight: 173g

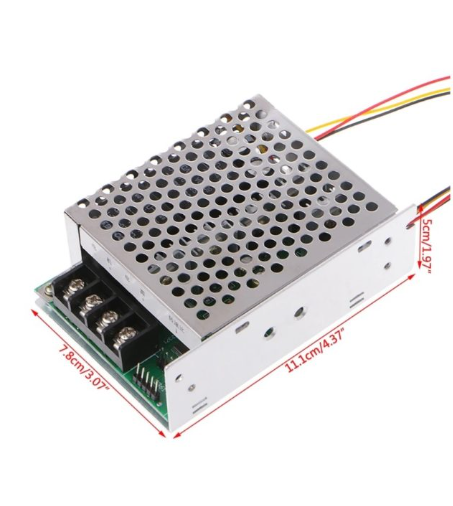

14. Board Dimensions (L x W x H) mm: 100 x 76 x 28
